All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

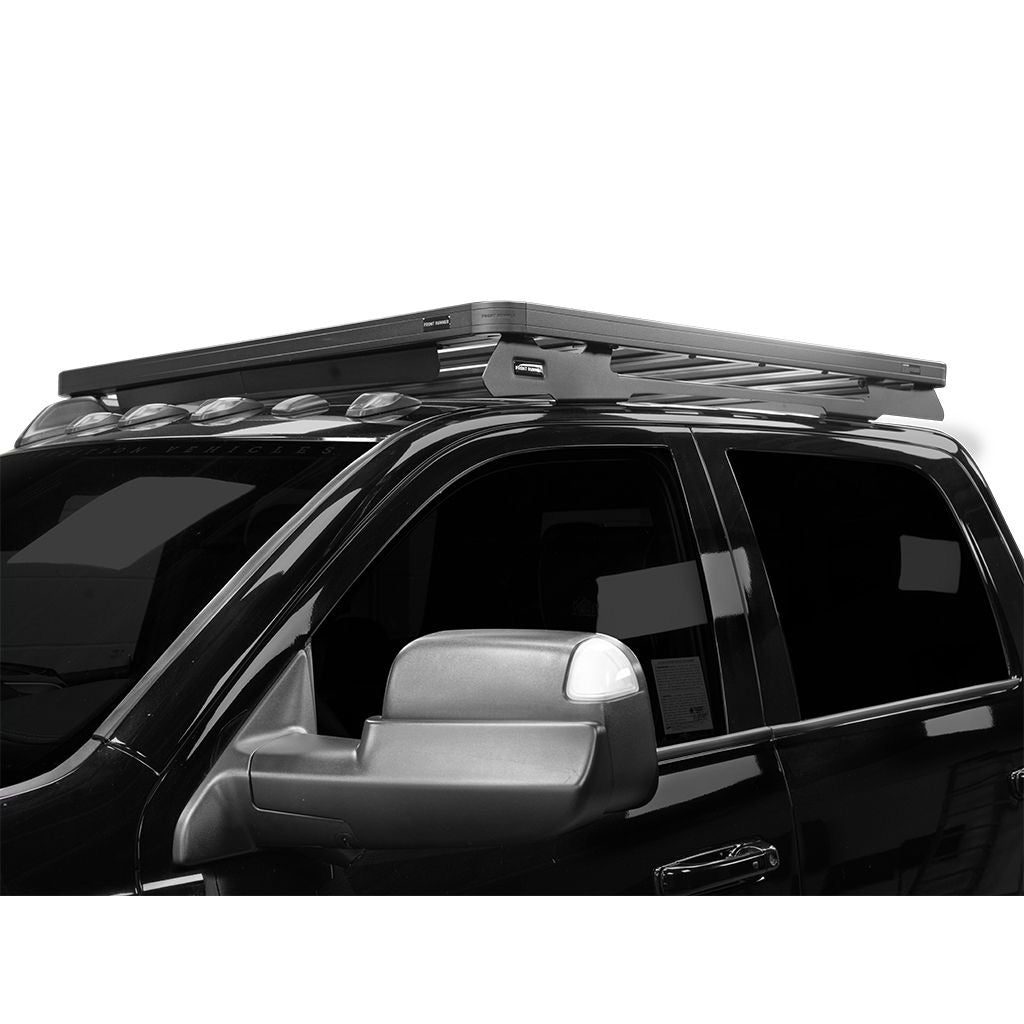

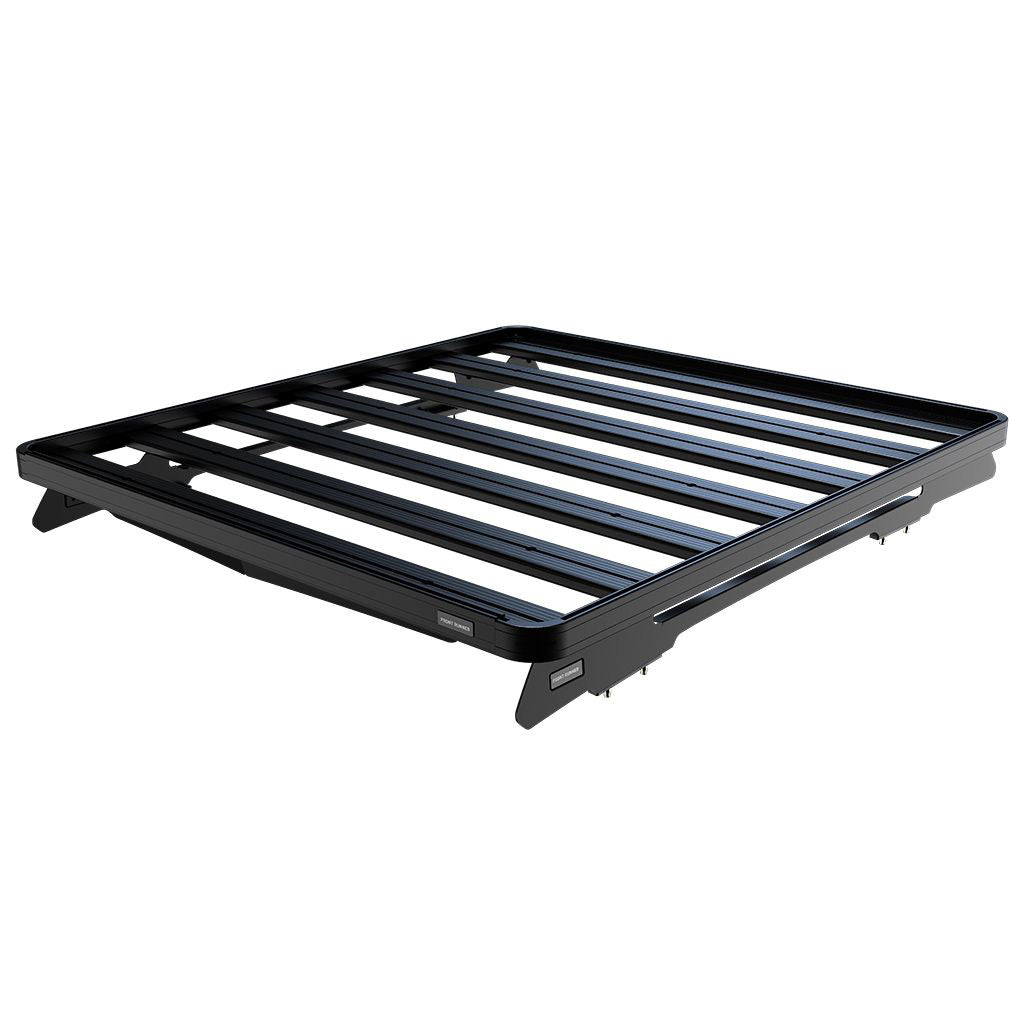

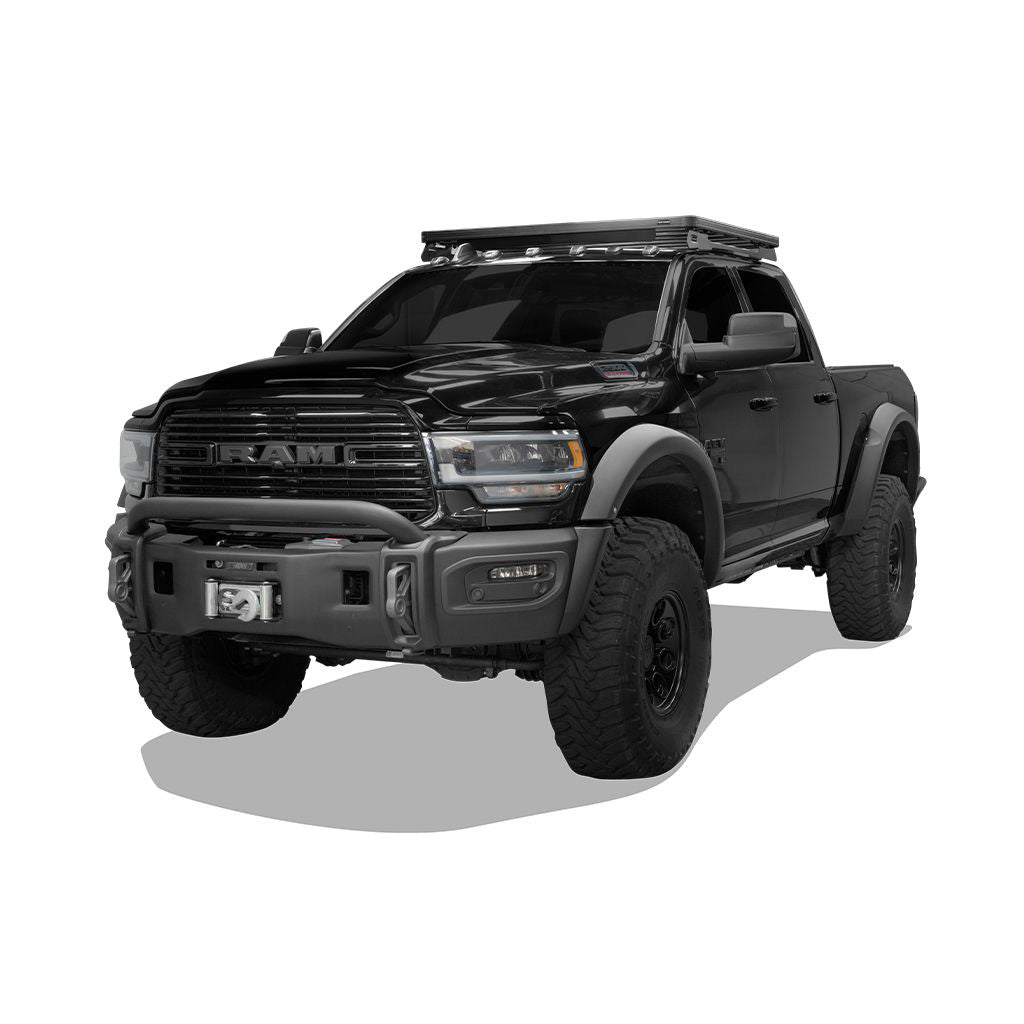

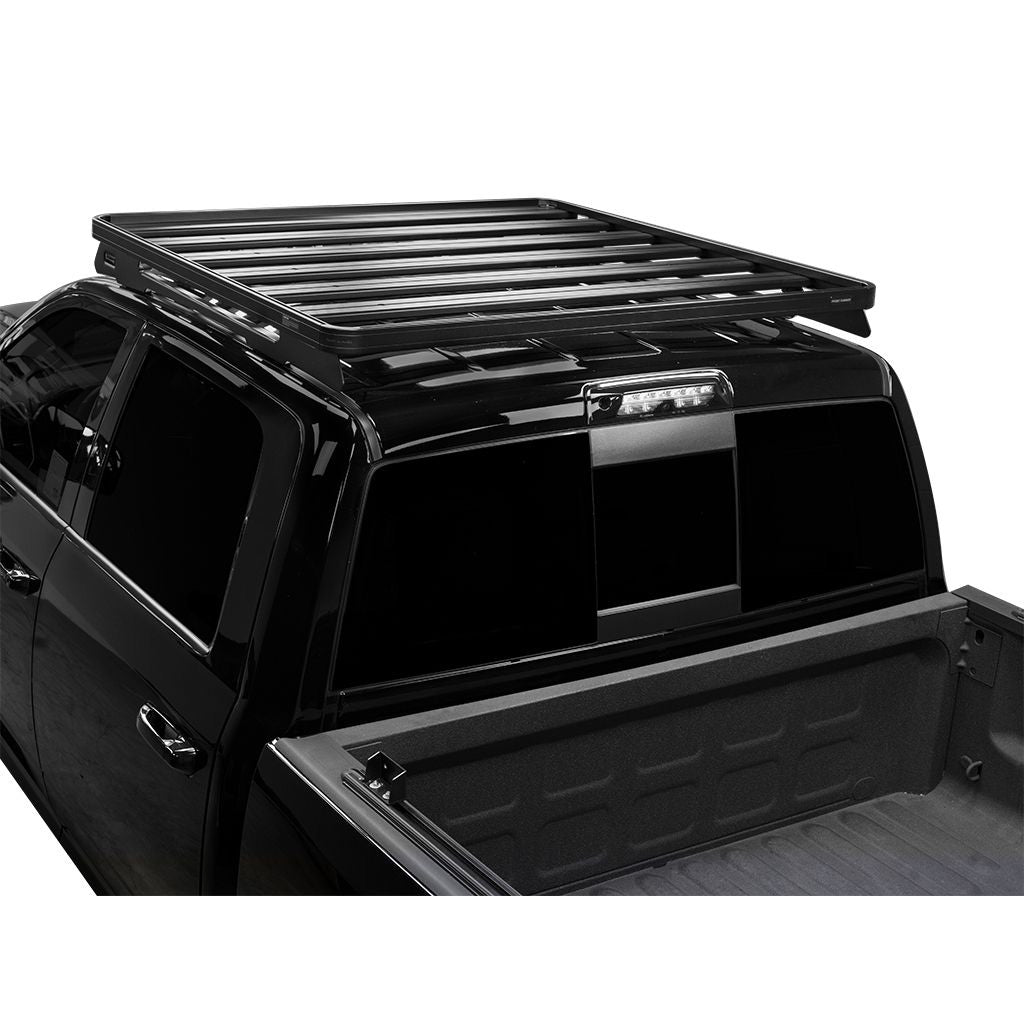

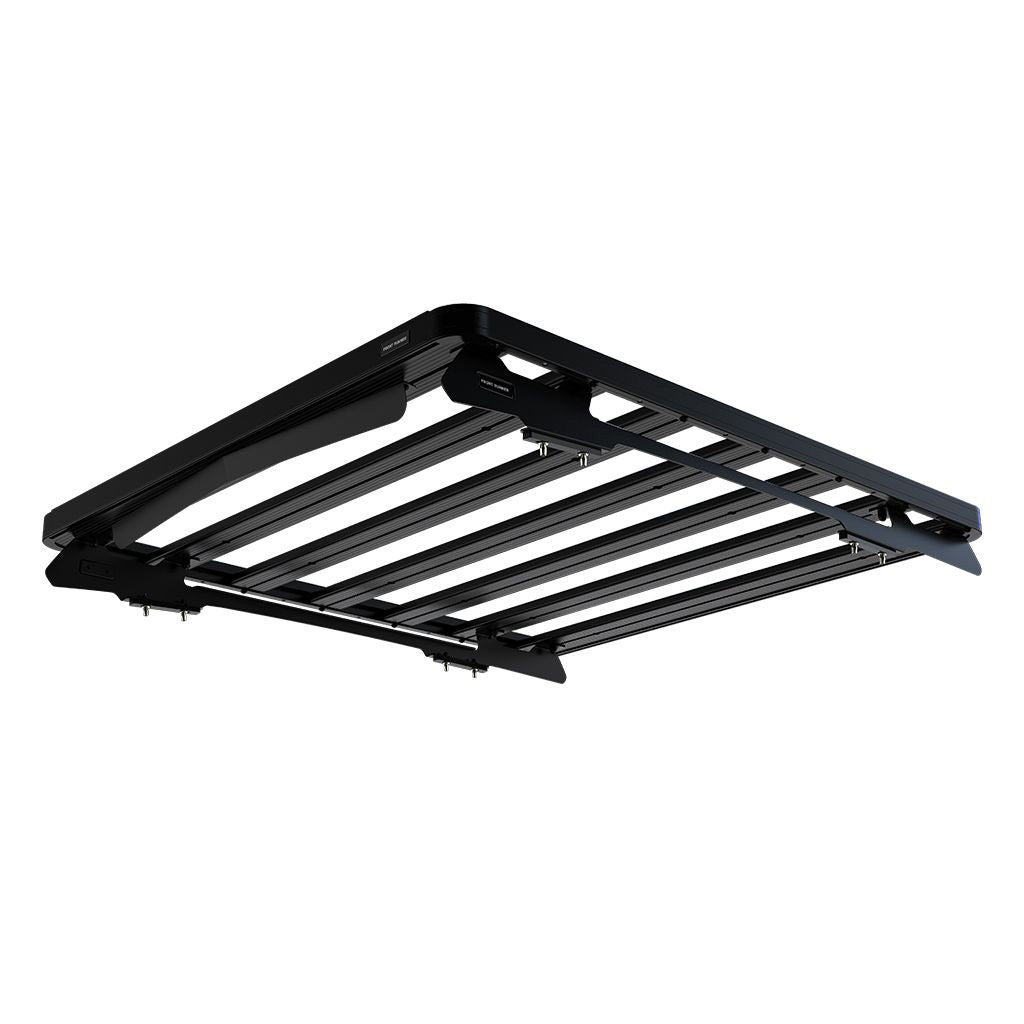

This 1358mm/53.5" long, full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Ram Crew Cab 2009+. Drilling is required for installation.
These Foot Rails contain 1 openings to access Front Runner under rack mount tables (1 smaller prep or 1 larger camp size table).
Both traditional and panoramic sunroofs may be operated in 'vent mode' and fully retracted, provided that you do NOT mount a table underneath. If you do mount a table underneath, only traditional sunroofs may be fully opened because they retract underneath the roof. Traditional sunroofs may NOT be operated in 'vent mode' because the table will interfere.
Models with traditional sunroofs include: Ram 1500 (2009-2018), Ram 1500 Classic (2019-Current), Ram 2500/3500 (2019-Current)
Models with panoramic sunroofs include: Ram 1500 (2019-Current)
1x FADR001 - Ram 1500 Crew Cab (2009-Current) Foot Rails
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)

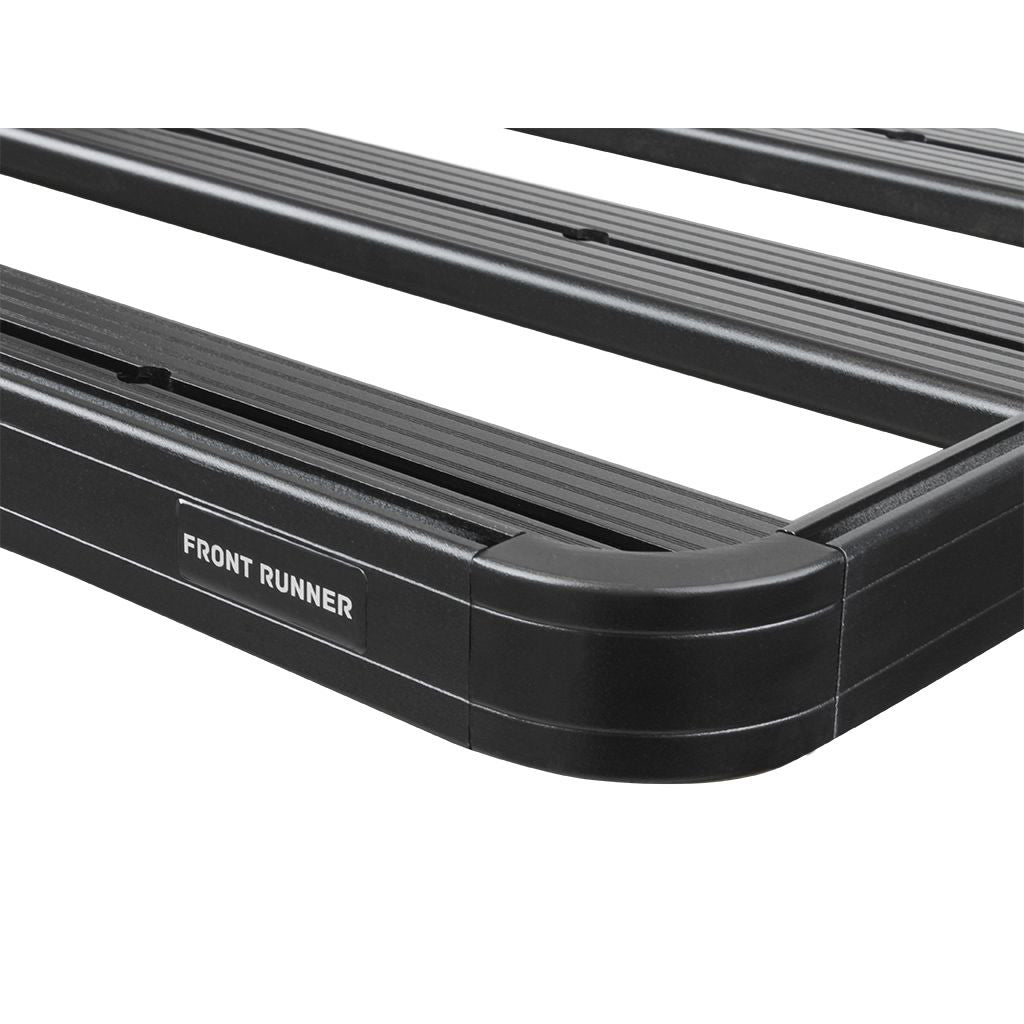

Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 59.13kg (130.36lbs)

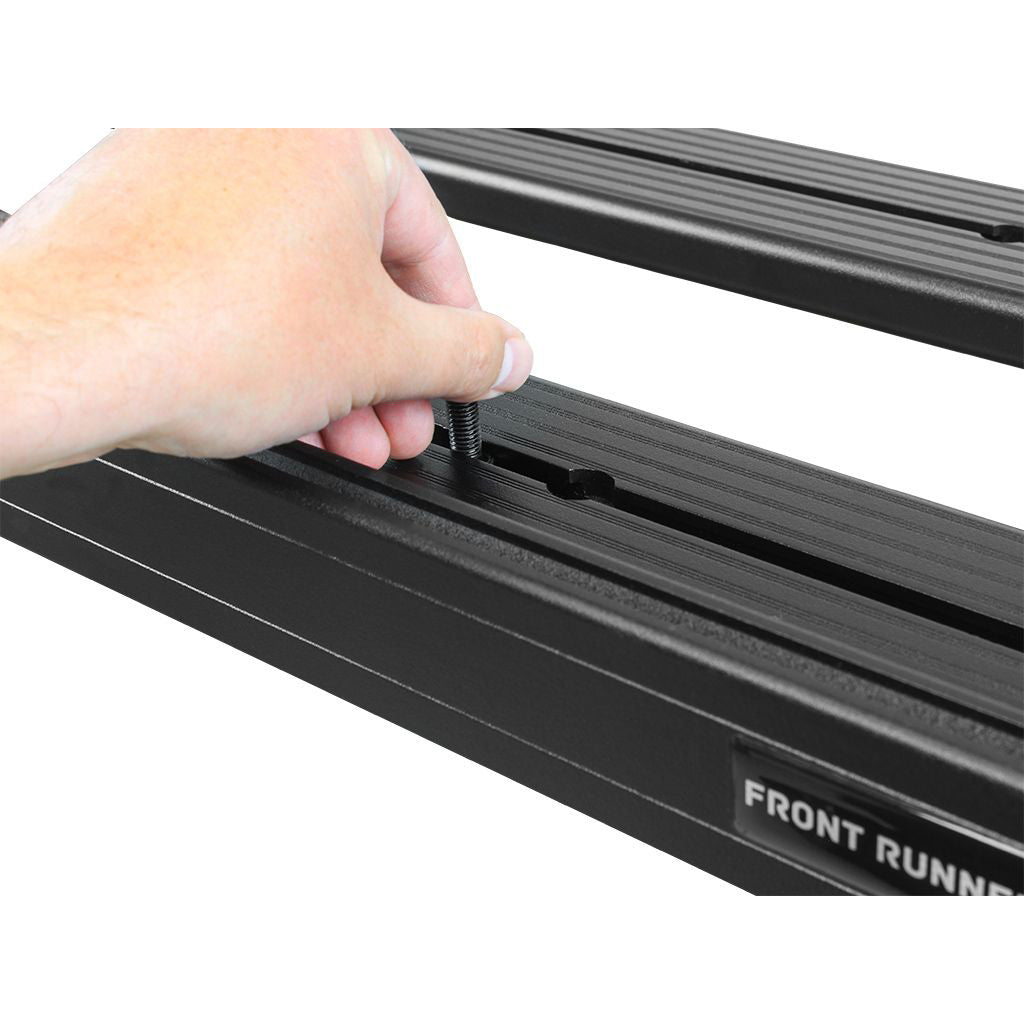

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Weight: 445mm (18")
Length: 1730mm (68")
Height: 255mm (10")
Weight: 28.6kg (63lbs)
