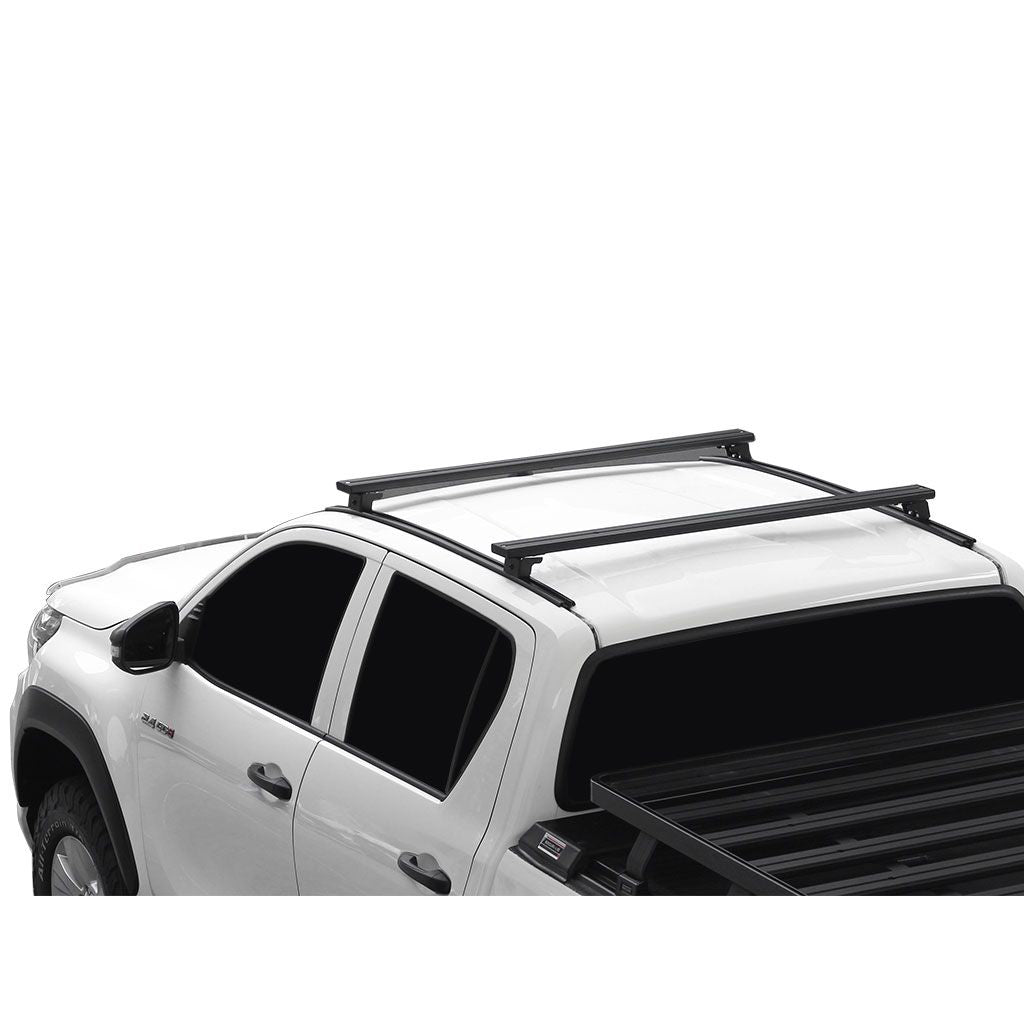

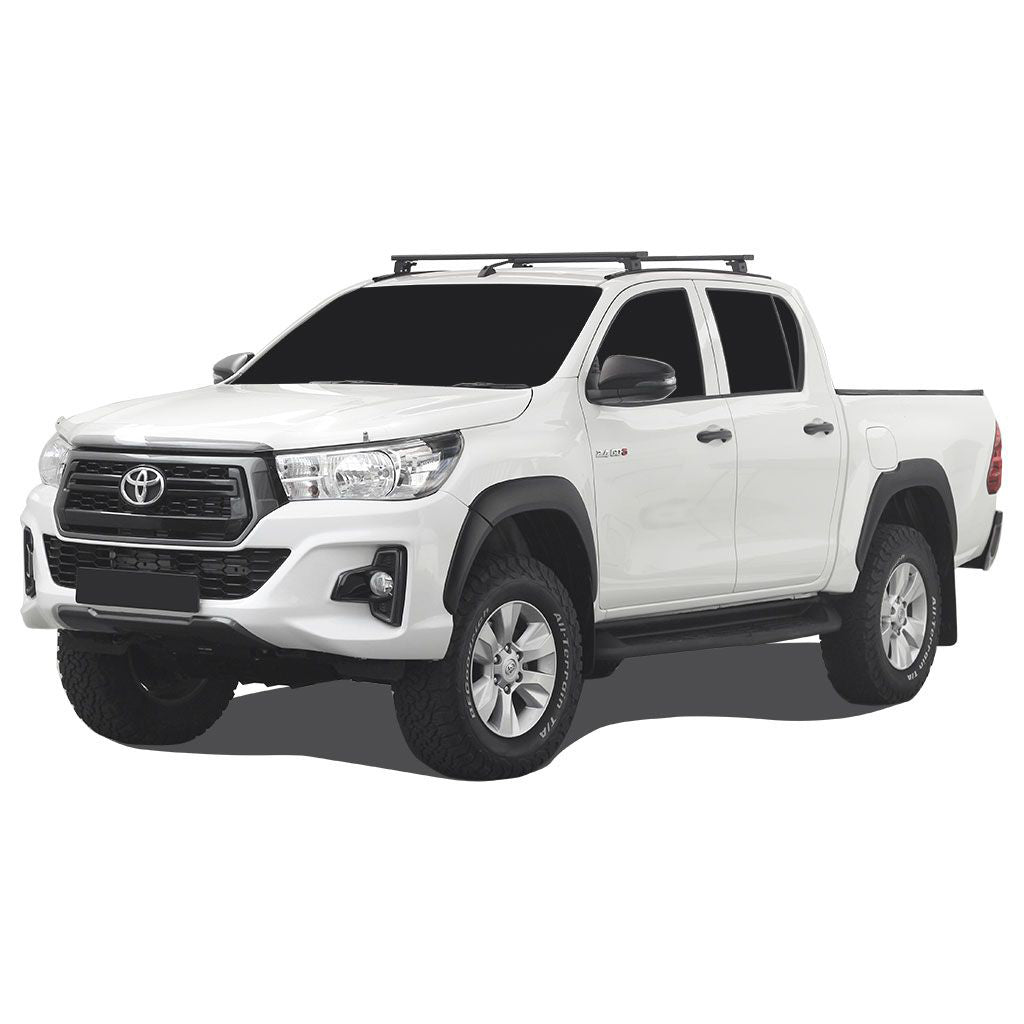

Front Runner Load Bar Kit / Track & Feet for Toyota Hilux Revo DC (2016+)

If this item is showing as in stock in our Main Warehouse, it will be dispatched within 1-2 working days. If this item is only showing as in stock in our EU Warehouse, please allow 6-7 working days for this item to be dispatched. EU Customers: items in stock in our EU Warehouse will be dispatched within 1-2 working days.

Tax information:

• EU CUSTOMERS: EU VAT will be charged on this product at the checkout. There will be NO import duties or import taxes!
• ALL OTHER INTERNATIONAL CUSTOMERS: this product can only be shipped from our UK warehouse. Import duties and/or import tax might be payable when this shipment arrives

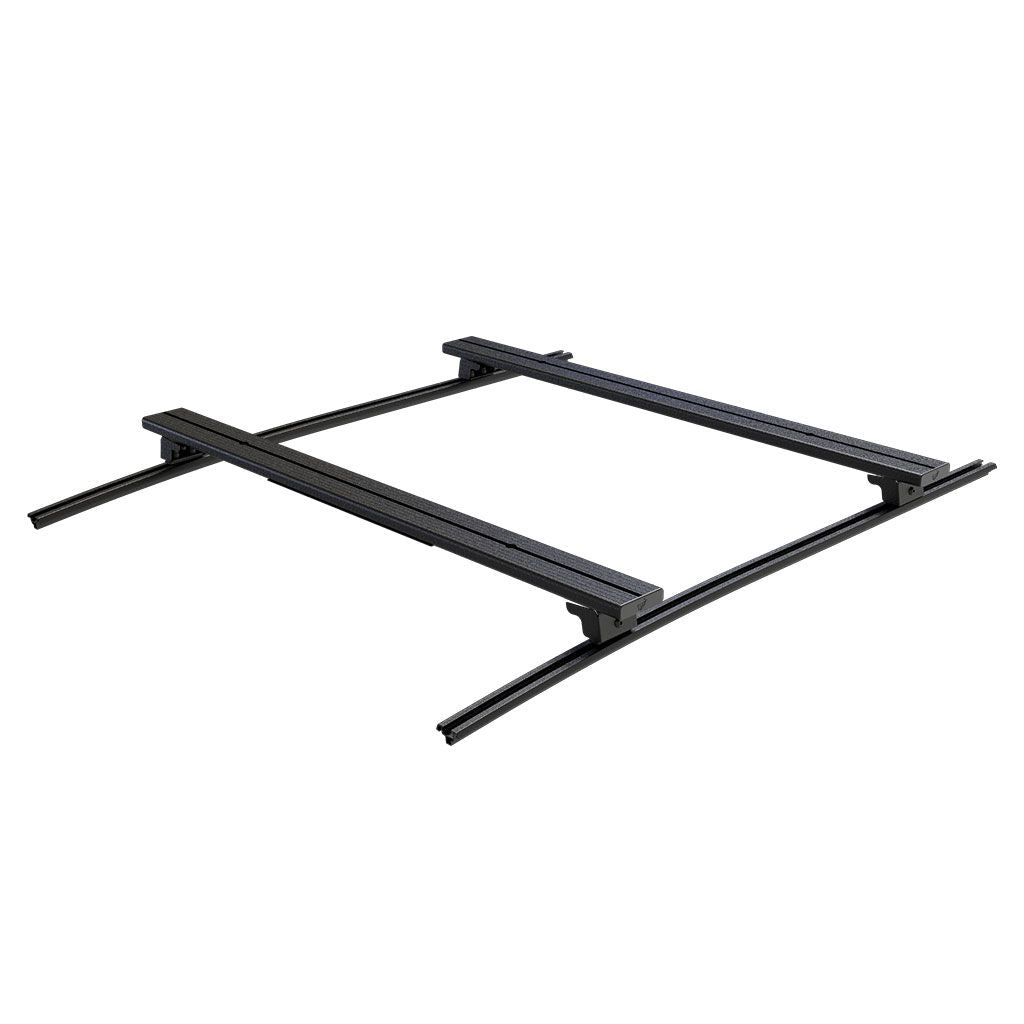

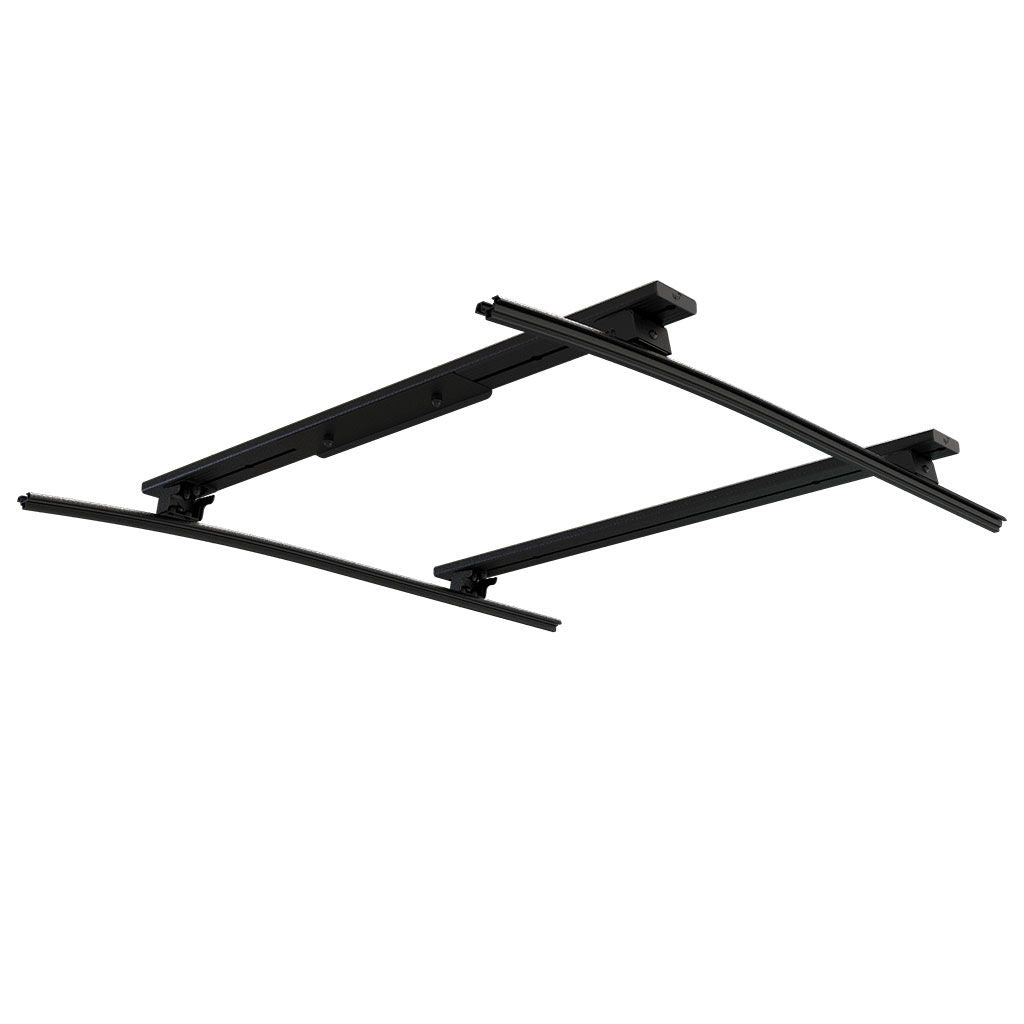

Includes wind deflector, four (4) mounting feet and two (2) 1165mm Load Bars that fit into the supplied tracks

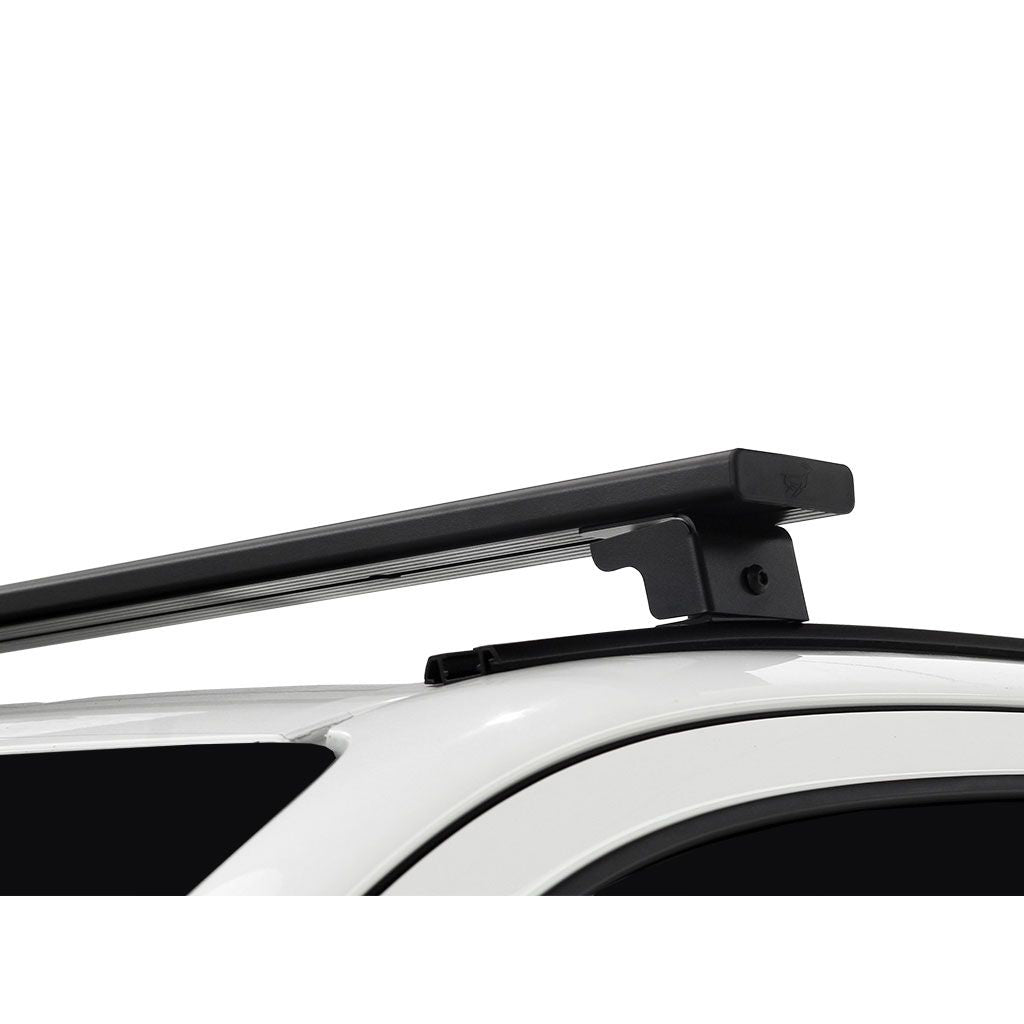

Load Bars are mounted via mounting feet that bolt directly onto the supplied tracks

Uses the same strong, corrosion-free aluminum slats found in Front Runner racks

Sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats

Made from steel and durable, weather-resistant black powder coated aluminum

Includes all hardware, components and installation guide needed to fit Load Bars on a vehicle

Consisting of:
2x FASS012 - Foot Set / 40mm - 50mm
1x LBSK013 - Load Bar Pair 1165mm(W)
1x TRTH006 - Toyota Revo DC (2016-Curr) Tracks/1300mm(L)
1x WDLB001 - Load Bar Wind Deflector / 10mm

Material Used:
Black epoxy powder - coated T6 aluminium

Approximate Installed Weight: 8.44kg (18.61lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 115mm (5")
Length: 1320mm (52")
Height: 255mm (10")

Shipping Weight:
Weight: 7.14kg (16lbs)
